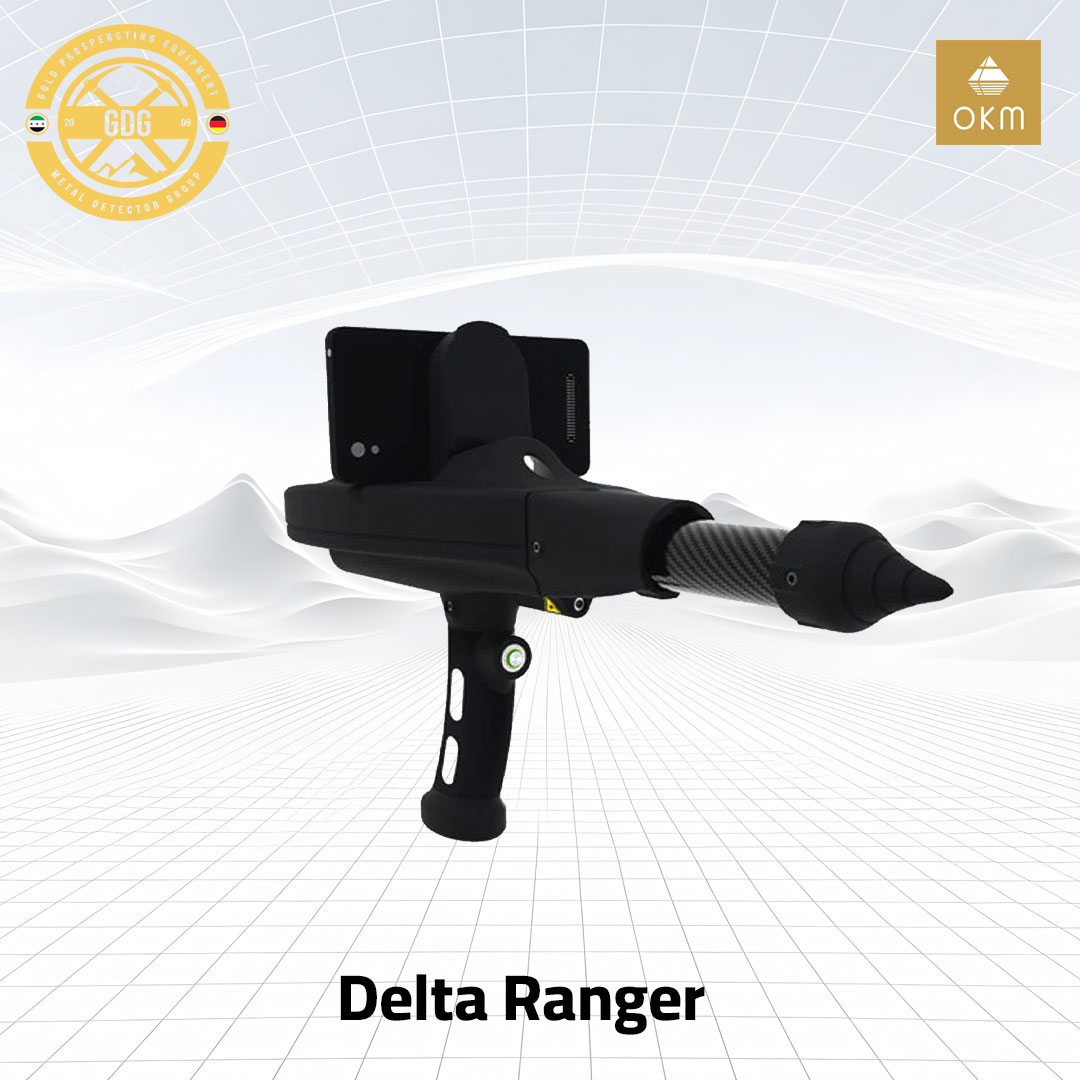

Treasure Hunting with Multiple Technologies – OKM Delta Ranger
The OKM Delta Ranger is a unique multi-technology treasure detector that cannot be found in any other store. It is specialized in the fast and easy detection of gold objects, relics, treasures, voids, tunnels, and tombs even in hard-to-access terrains.
🔍 Operating Modes
This advanced device features six operating modes in one:
- Bionic Stream: Long-range mode for detecting freshly hidden gold.
- Ionic Stream: Long-range mode for detecting long-time buried gold.
- Magnetometer: Fast detection technology for preparation and optimization of 3D Ground Scans.
- 3D Ground Scan: Renowned 3D imaging technology detecting treasures up to 60 ft (18 m) deep.
- Thermo Scan: Thermography mode for mapping hidden tunnels and rooms behind walls and underground.
- Thermo Stream: Real-time thermography mode for detecting hidden caves and tombs behind walls and underground.
🌟 Highlights and Features
- Digital compass
- Visual target indication
- Multi-lingual operation in 14 languages
- Control by smartphone app for easy data sharing and analysis
⚡ Technical Features
- 2D Visualization
- 3D Ground Scan
- 3D Visualization
- Interchangeable probes
- Headphones
- GST / EMSR
- Multilingual operation
- Rechargeable high-capacity battery
- Wireless technology
- Color display / touchscreen
- Thermography
- Speaker
- Internal memory
- Long-range detection
- LED lighting
The OKM Delta Ranger is the perfect solution for treasure hunters seeking the ultimate detection experience with advanced German engineering and precise performance.
| Unit | Parameter | Specification |
|---|---|---|
| Control Unit | Dimensions (L x W x D) | 300 x 135 x 220 mm | 11.8 x 5.3 x 8.7″ |
| Weight | 640 g | 22.6 oz | |
| Battery | Li-ion, non-removable | |
| Input (max.) | 5 V DC, 2 A, 10 W | |
| Charge Time | 3.5 h @ 10°C – 30°C | 50°F – 86°F | |
| Operating Time | approx. 24 h | |
| Processor / Main CPU | Cortex M3, 32 MHz | |
| Sample Rate | 1024 values / second | |
| Measurement Resolution | 16 bit | |
| Operating Temperature | –5°C – 50°C | 23°F – 122°F | |
| Storage Temperature | –20°C – 70°C | –4°F – 158°F | |
| Air Humidity | 5% – 75% | |
| Laser | Laser Beam Distance | max. 150 m | 490 ft |
| Laser Output | max. 2.5 mW | |
| Emitted Wavelength | 650 nm | |
| Laser | Class 3R (EN 60 825-1) | |
| Operating Temperature | –5°C – 50°C | 23°F – 122°F | |
| Waterproof | No | |
| Data Transfer | Technology | Bluetooth 5.2 |
| Frequency Range | 2.4 – 2.4835 GHz | |
| Maximum Transfer Rate | 1 Mbps | |
| Receiving Sensitivity | –85 dBm | |
| Maximum Range | approx. 8 m | 25 ft (Line of Sight) | |
| Compass | Yes | |
| Long-Range Probe (L) | Length | 195 mm | 7.7″ |
| Diameter | 40 mm | 1.6″ | |
| Weight | 105 g | 3.7 oz | |
| Sensor Technology | SCMI-15-D / LD-4E | |
| Thermo Probe (T) | Length | 230 mm | 9.1″ |
| Diameter | 40 mm | 1.6″ | |
| Weight | 110 g | 3.9 oz | |
| Technology | Contactless infrared | |
| Optimal Surface Temperature | 10°C – 25°C | 50°F – 77°F | |
| Temperature Range | –5°C – 50°C | 23°F – 122°F | |
| Ground Scan Probe (G) | Length | 475 mm | 18.7″ |
| Diameter | 40 mm | 1.6″ | |
| Weight | 165 g | 5.8 oz | |
| Sensor Technology | SCMI-15-D | |
| The technical data are average values. Minor deviations are possible during operation. | ||
