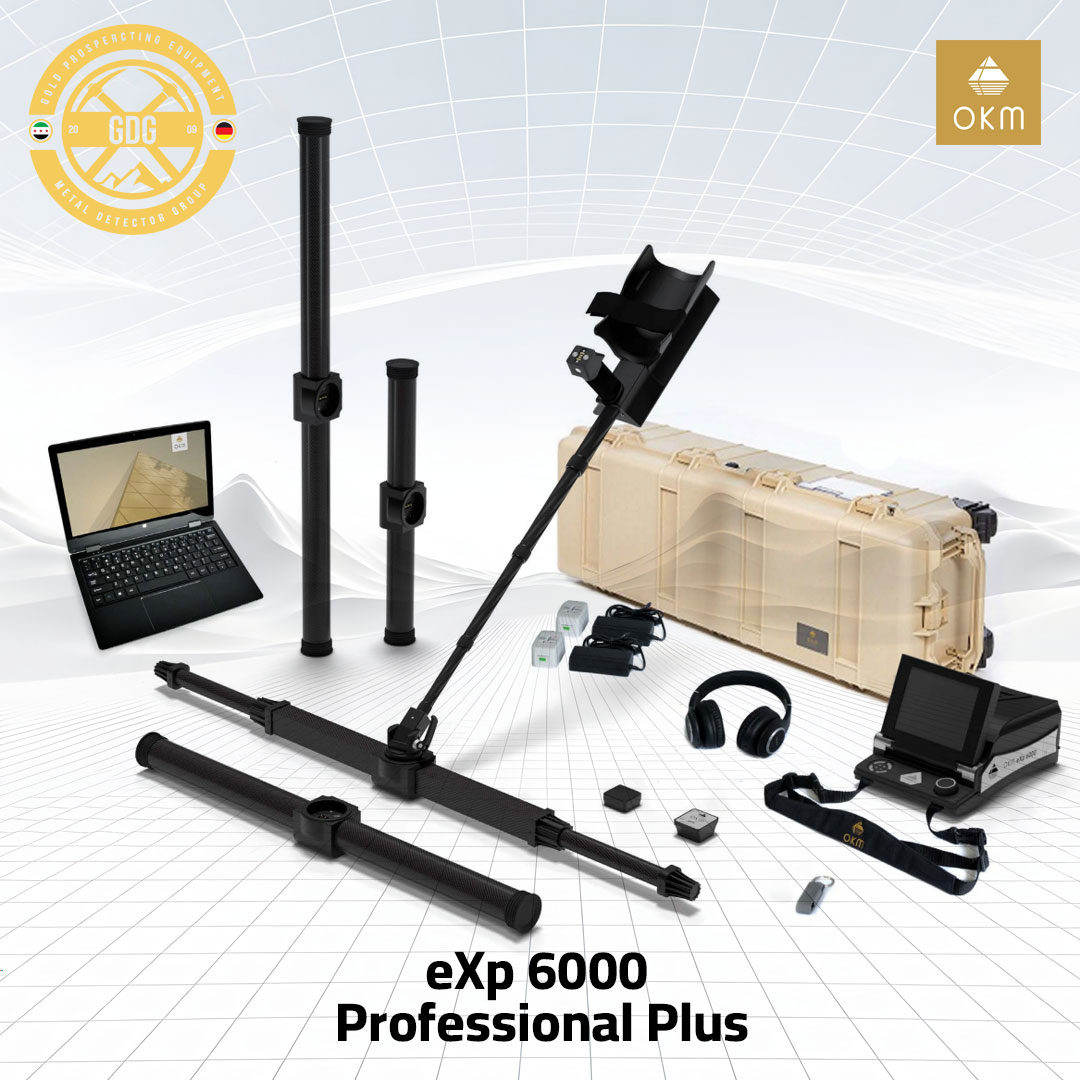

eXp 6000 – 3D Ground Scanner and Metal Detector for Highest Demands
The eXp 6000 is one of OKM’s top-of-the-line detectors for treasure hunters, archaeologists, gold seekers, and ground surveyors. This wireless detector can be controlled via touchscreen, smart glasses, or notebook. It features the world’s first telescopic probe extendable up to 124 cm (4 ft).
Key Features
- Color Display and Touchscreen: Easy GUI with auto brightness adjustment.
- Height-adjustable Telescopic Rod: With ergonomic armrest and magnetic connectors for quick probe change.
- Interchangeable Carbon Probes: Lightweight, rigid, and wireless data transmission to control unit.
- Orientation Sensor: Ensures correct probe alignment with acoustic and visual alerts.
- Operating Modes: 3D Ground Scan, Pinpointer, Mineral Scan, Live Scan*, Magnetometer, Tunnel Scan* (*Professional Plus only).
- 3D Analysis Software: Visualizer 3D Studio for detailed target evaluation (depth, size, position).
- Optional Accessories: Android tablet, Smart Glasses, Power Pack for extended use.
Technical Specifications
- 3D Ground Scan with immediate on-screen results
- 3D and 2D visualization with rotation and scaling
- Live Stream and Tunnel Scan (Professional Plus only)
- Multilingual interface (German, English, French, and more)
- Rechargeable high-capacity battery
- Wireless technology and LED lighting
- Internal memory for scan data storage
| Unit | Parameter | Specification |
|---|---|---|

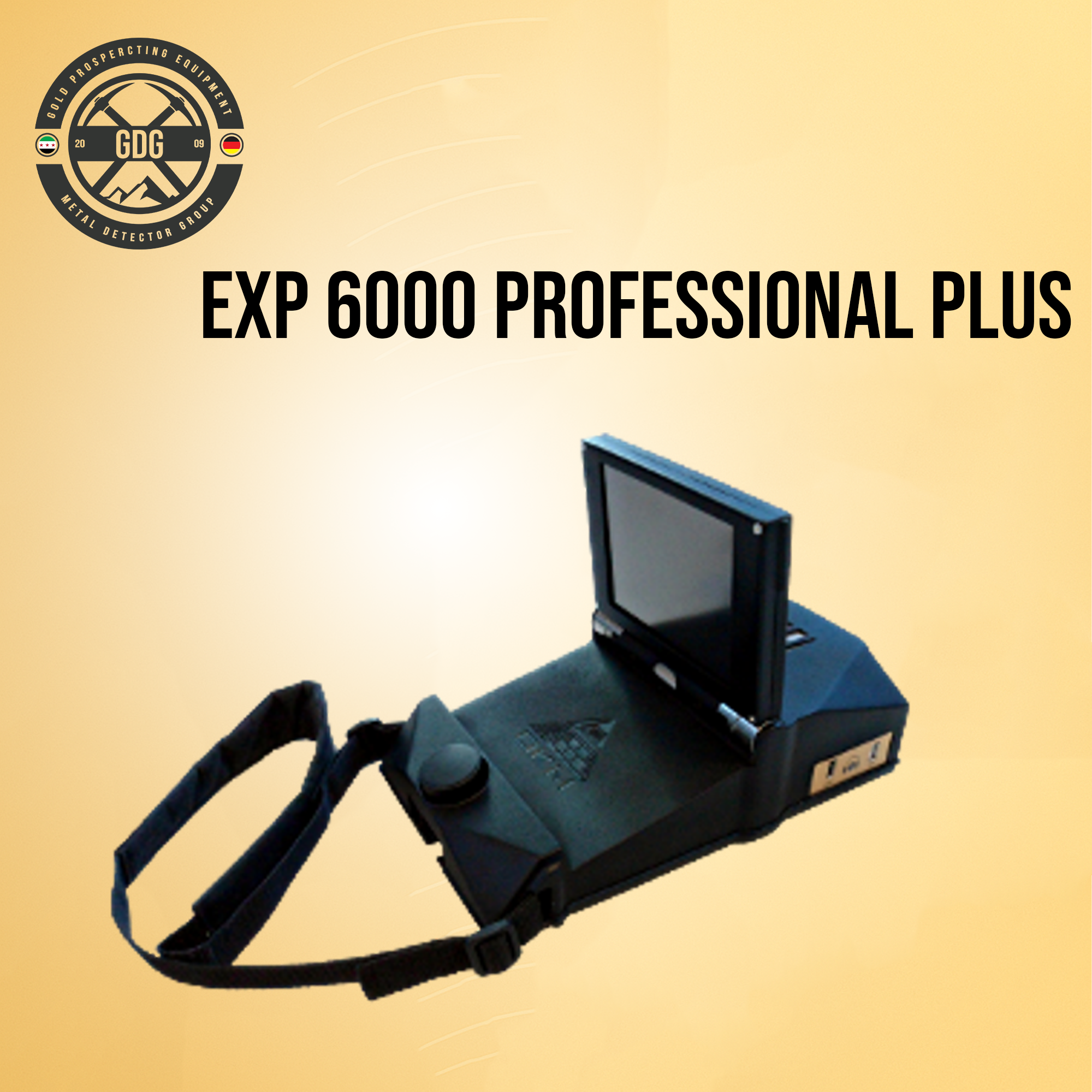

| Control Unit | Dimensions (H x W x D) | 120 x 210 x 280 mm |
| Weight | approx. 2.34 kg | |
| Voltage | 11.8 – 19 VDC, 50 W max | |
| Safety Class | IP40 | |
| Operating Time (full charged, 25°C) | approx. 4 hours | |
| Operating Temperature | -10°C – 50°C | |
| Display | 6.5” Diagonal, 1024 x 768 Pixel TFT Color, 650 cd/qm | |
| Processing Unit | QuadCore AMD @ 2GHz, OpenGL4.2 HD Radeon GPU | |
| Working Memory (RAM) | 4 GB Kingston HyperX | |
| Data Memory | 8 GB SDCard, Class 10 | |
| Feedback | acoustic, visual | |
| Storage Temperature | -20°C – 60°C | |
| Air Humidity | 5% – 75% | |
| Waterproof | No | |
| Data Transmission | WiFi 802.11n a/b/g, MIMO 2×2, 11-54 Mbps, max. 4 m (line of sight) | |
| Telescopic Rod | Dimensions (H x W x L) | 210 x 135 x 680 – 1340 mm |
| Weight | approx. 1.76 kg | |
| Voltage | 11.8 – 19 VDC, 22 W max | |
| Safety Class | IP40 | |
| Operating Time (full charged, 25°C) | approx. 5 hours | |
| Operating Temperature | -10°C – 50°C | |
| Processing Unit | ARM Cortex M0+ @ 48 MHz | |
| Working Memory (RAM) | 32 KB | |
| Data Memory | 256 KB | |
| Storage Temperature | -20°C – 60°C | |
| Air Humidity | 5% – 75% | |
| Waterproof | No | |
| Data Transmission | WiFi 802.11n a/b/g, 11-54 Mbps, max. 4 m (line of sight) | |
| Super Sensor | Length | 950 mm |
| Weight | approx. 0.94 kg | |
| Receiver | Dual / Hi-Gain – Vertical – Geophysical Phase Reader – EMSR | |
| Sensor Technology | SCMI-15-D | |

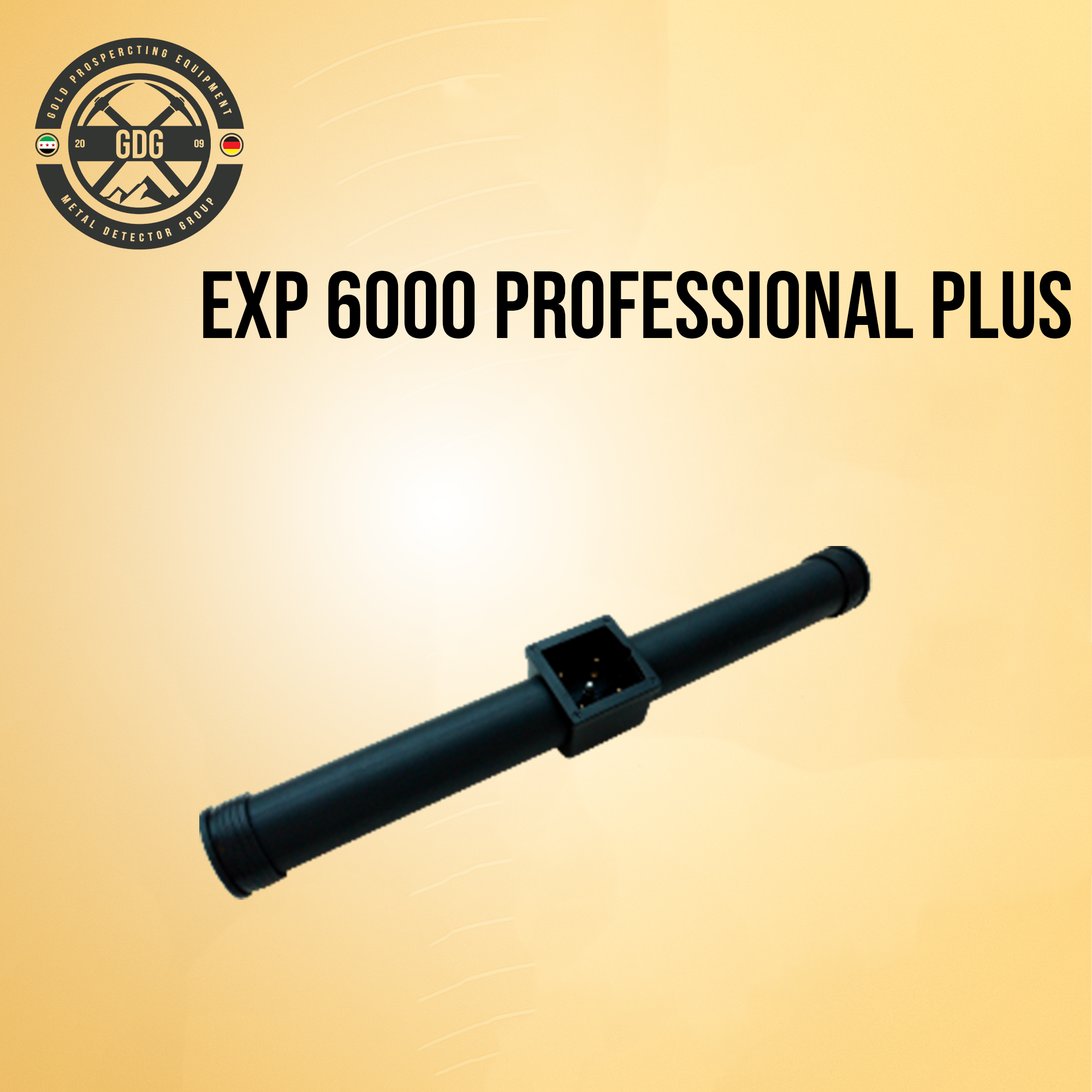

| Telescopic Probe | Length | 820 – 1240 mm |
| Weight | approx. 1.36 kg | |
| Receiver | Dual Geophysical Phase Reader – EMSR | |
| Sensor Technology | SCMI-15-D | |
| The technical data are average values. Minor deviations are possible during operation. | ||
